8 x 8 Twisted Pair Matrix Switcher

Description

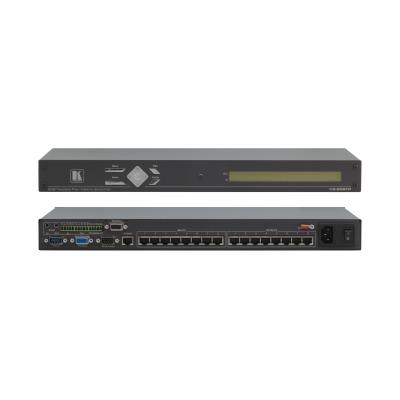

The VS-808TP is a high-performance matrix switcher for analog twisted pair signals. The unit routes any or all remote inputs to any or all remote outputs simultaneously.
• Device Compatibility – Designed for use with the auto−adjusting TP−133/TP−134 transmitter/receiver pair.
• Local Input/Output – Includes an additional switchable VGA stereo audio and RS−232 input and output for use in direct connections or when connecting to the compatible TP−133/TP−134.
• Follow or Breakaway Audio Switching.
• RS-232 Baud Rate – For control and data signals up to 115.2kbps.
• Memory Presets – Includes 15 user−programmable presets for quick−change configurations.
• Range – Up to 200m (656ft).
• Cable – For optimum range and performance use Kramer's BC DGKat524 BC−DGKat623 and BC−DGKat7a23 cables. Note that the transmission range depends on the signal resolution graphics card and display used. The distance using non−Kramer CAT 5 CAT 6 and CAT 7 cables may not reach these ranges. Use only shielded cable where both ends of the shield are soldered to ground.
• Flexible Control Options – Front panel buttons RS−232 RS−485 and Ethernet.
• Control via Kramer 2000 Protocol.
• Indicators – Two−line LCD display for separate route indication of video audio or RS−232.
• Worldwide Power Supply – 100−240V AC.
• Standard 19” Rack Mount Size – 1U. Rack ears included.
