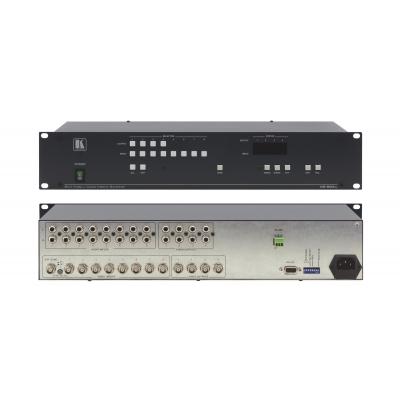

8 x 4 Composite Video & Stereo Audio Matrix Switcher (200MHz)

Description

The VS−606xl VS−804xl and VS−808xl are high−performance matrix switchers for composite video and unbalanced stereo audio signals. Switching during the vertical interval ensures glitch−free switching with genlocked sources.

• Bandwidth – 200MHz (−3dB) fully loaded.
• Control – Front panel RS−232 (K−Router™ Windows?−based software is included) RS−485 IR remote (included) & remote IR receiver (optional).
• Take Button – Executes multiple switches all at once.
• Memory Locations – Stores multiple switches as presets for recall and execution when needed.
• Audio Breakaway Switching.
• Vertical Interval Switching.
• Switching Synchronization – Synchronizes either to external reference or the incoming video.
• Selectable Sync Signal Termination.
• Standard 19” Rack Mount Size – 2U.
