Advanced Serial Communication Matrix

Description

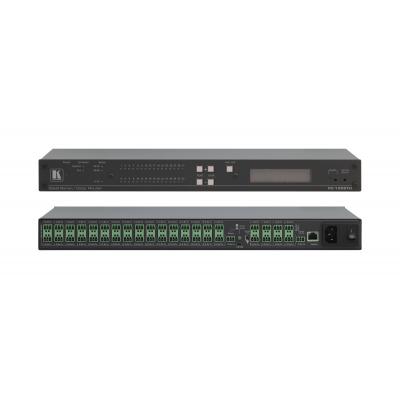

The FC−132ETH is an advanced converter for RS−232 serial control signals to and from the Ethernet. It has 33 RS−232 ports (one of them can be used as RS−485) to which serial data can be injected from eight RS−232 ports or from a configured ETH connection. Depending on the routing of the matrix one−to−one bidirectional communication or one−to−many unidirectional communication are supported. The FC−132ETH is setup via easy−to−use feature−loaded Web pages supported on all major browsers making it possible to access from mobile devices PCs and MACs.

– Ports – RS−232 RS−485 and Ethernet.
– Companion Devices – Used as a data handling companion for the VS−1616D and VS−3232DN routers.
– Baud Rates – All common baud rates up to 115200 are supported.
– Communications – Unidirectional and bidirectional supported dependent on the routing state.
– Built-In Web Page Server – For easy configuration.
– Event Logs.
– Control – Front panel RS−232 ETH Web pages.
– Size: – 1U.
