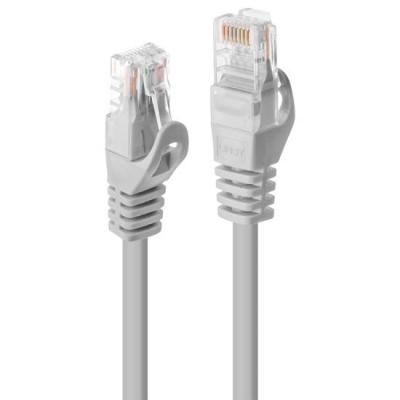

15m Cat.5e U UTP Network Cable Grey

Description

15m Cat.5e U UTP Network Cable Grey

Cat.5e U/UTP PVC network cable with support for bandwidth up to 100MHz and features a snagless design with gold plated contacts for ethernet standards up to 1GBase-T.

Cat.5e cable designed for operating frequencies up to 100MHz. The unshielded version (U/UTP) is designed in its electrophysical parameters (NExT FExT etc.) in such a way that it can be used for Gigabit Ethernet despite the lack of shielding. These cables are manufactured and tested according to the ISO/IEC 11801 specification. The cables are packaged individually in a polybag.

The gold-plated contacts ensure reliable corrosion-free connections over extensive periods of time. A robust snagless strain relief design prevents damage to the connector latch during installation and removal.

PRODUCT DETAILS

• Twisted Pair Patch Cable with RJ45 connectors
• Cat.5e U/UTP PVC
• Integrated snagless connector for latch protection
• Gold plated pins for better conductivity and elimination of signal loss
• 10 year warranty

TECHNICAL INFORMATION
Connectors

• Connector A: RJ45 Male
• Connector B: RJ45 Male
• Housing Material: Polycarbonate
• Connector Plating: –
• Pin Construction: Copper Alloy
• Pin Plating: Gold plated
• Dimensions (approx.) WxDxH: 11.6×22.8×8.3mm (0.46×0.90×0.33in)

Cable Construction

• Length: 15m (49.21ft)
• Colour: Grey
• Type: Cat.5e
• Jacket Diameter: 4.8mm (0.19in)
• Jacket Material: PVC
• Conductor Material: Copper
• Conductor Gauge: 26AWG
• Shielding: –

Specifications

• Supported Bandwidth: 100MHz
• Nominal Attenuation: 24dB/100m @100MHz
• Minimum Band Radius: 57mm (2.24in)
• Operating Temperature: -10?C – 60?C (14?F – 140?F)
• Storage Temperature: -20?C – 75?C (-4?F – 167?F)

Miscellaneous

• Packaging Type: Polybag
• Warranty (Years): 10
• Certificated: RoHS REACH UL California Proposition 65
