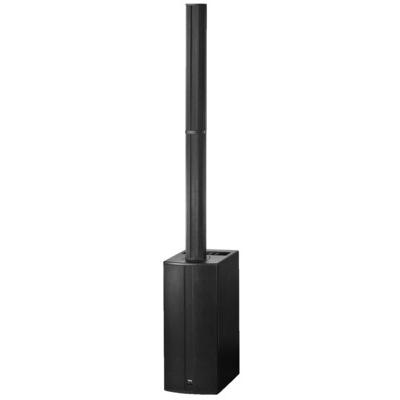

Active Column PA Speaker System with DSP 800 WMAX 400 WRMS

Description

is a compact active 3-way column PA speaker system with a DSP-controlled 2-channel class D amplifier module and a 4-channel mixer. The system consists of a subwoofer of very high power capability with two 20 cm (8) bass speakers as well as two column modules which are equipped with a total of twelve 7.6 cm (3) full range speakers and two 2.5 cm (1) tweeters. The different connection and configuration of the column modules allows an easy fine tuning with continuously adjustable equalizers via DSP in the inputs. The system provides a powerful sound and is suitable for various applications. The components are attached and connected via a twist-and-lock mechanism and therefore do not require any cables. The four inputs can be mixed and parallel out and mix out are also available.

Active column PA speaker system with DSP 800 WMAX 400 WRMS

• Compact full range system with bass-reflex subwoofer and two column modules
• 2 x 20 cm (8) bass speaker 12 x 7.6 cm (3) full range speaker + 2 x 2.5 cm (1) tweeter in a closed cabinet
• 2-channel class D amplifier system with 2 x 200 WRMS
• DSP-controlled functions for crossover network equalizer and limiter
• Sound pressure at nominal power: 115 dB music: 118 dB peak: 122 dB
• 4-channel mixer
• Continuously adjustable sound characteristics
• Mono selector switch
• Indication of signal limiter and clip
• Feed-through outputs rec out and mix output
• High-quality wooden cabinet with protective metal grille
• No cables components attached via twist-and-lock mechanism
