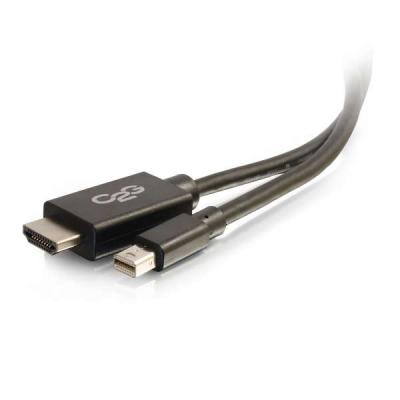

0.9m Mini DisplayPort Male to HDMI Male Adapter Cable Black

Description

0.9m Mini DisplayPort™ Male to HD Male Adapter Cable Black

Connect a device with a Mini DisplayPort output to any display with an HDMI input

• Product #: 84420
• Connector 1: (1) Mini DisplayPort Male
• Connector 2: (1) HDMI Male
• Colour: Black
• Length: 0.9m

Product Description
The Mini DisplayPort to HD adapter cable is an ideal solution for a conference room or huddle space by connecting a tablet laptop computer or another source device with a Mini DisplayPort output to a projector monitor or HDTV which accepts an HDMI input.

Convenience
This adapter cable carries a digital audio/video signal for a convenient single cable solution that delivers audio and video to a presentation.

Performance
Supporting resolutions up to 1080p at 60Hz with a simple plug and play allows this adapter cable to meet the requirements for high performance applications.

Note: This product is TAA compliant.

Product Features
• Directly connect a Mini DisplayPort output to an HDMI input.
• Carries a digital audio/video signal.
• Supports up to a 1080p resolution at 60Hz.

Product Specifications
• Colour: Black
• Length: 3.00 Foot
• UPC: 757120844204
• Warranty: 3 Years
• Vendor: C2G
• Weight: 0.105 LB

Electrical Specifications
• Voltage Rating: 30v
• Conductor Resistance: @ 20?C max
• Insulation Resistance: 10MΩ/km
• Time Delay: 5.2ns/m (max)
• Attenuation: 5.02dB@100-450MHz 7.69dB@1GHz 12.595dB@2GHz 17.495dB@3GHz 22.395dB@4GHz 27.295dB@5GHz 32.195dB@6GHz 37.095dB@7GHz

Physical Specifications
• Operating Temperature: 0?C to 50?C
• Storage Temperature: -25?C to 70?C
• Approvals: CE

Conductor (2 Conductors 5 Pair)
• Conductor: 30AWG (7/0.1TC)
• Insulation: FM-PE ID:0.8?0.05mm
• Colour: White/Brown White/Red White/Orange White/Green White/Blue
• Drain: 30AWG (7/0.1TC) HD-PE ID:0.56?0.05
• Shield: AL-Mylar Wrap Coverage—100%

Conductor (5 Conductors)
• Conductor: 30AWG (7/0.1TC)
• Insulation: HD-PE ID:0.56?0.05mm
• Colour: Red/Orange/Yellow/Green/ White

Overall Cable
• Jacket: PVC
• Shield: AL-Mylar—Coverage 100% Braid—16/9/0.12
• Drain: 2:30AWG (7/0.08 BC)
• OD: 6.5?0.2mm
