1 in 4 out PC HD15 Distribution Amplifier

Description

1 in 4 out DA

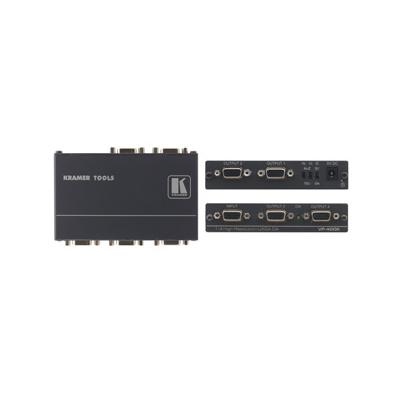

The VP-400K is a distribution amplifier for computer graphics signals with resolutions up to and exceeding UXGA. The unit takes one input provides correct buffering and isolation and distributes the signal to four identical outputs.

Technical Specifications:
INPUT: 1 UXGA on an 15-pin HD
connector.
OUTPUTS: 4 UXGA on 15-pin HD
connectors.
MAX. OUTPUT
LEVEL:
2.2Vpp.
BANDWIDTH (-
3dB):
400MHz.
DIFF. GAIN: 0.03%.
DIFF. PHASE: 0.03Deg.
K-FACTOR: <0.05%.
S/N RATIO: 72dB @5MHz.
CONTROLS: Internal ID BIT switch; internal
analog/TTL switches for setting
the sync.
COUPLING: DC.
POWER SOURCE: 5V DC 130mA.
DIMENSIONS: 12.1cm x 7.18cm x 2.42cm
(4.76 x 2.83 x 0.95) W D H.
WEIGHT: 0.3kg (0.67lbs) approx.
ACCESSORIES: Power supply (5V/2.6A)
mounting bracket.
OPTIONS: RK-3T 19 rack adapter.
