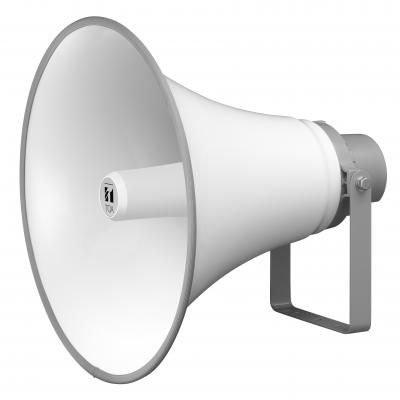

30 Watt (100V) Horn Speaker

Description

The TC-631M is a highly intelligible general-purpose speaker suited to public address announcement applications. Its external speaker component finished with powder coating and stainless steel screws ensure the unit's weatherproof capability.

• Rated Input 30 W
• Line Voltage 100 V line or 70 V line
• Rated Impedance 100 V line: 330 Ω (30 W) 670Ω (15 W) 1 kΩ (10 W) 2 kΩ (5 W)
• 70 V line: 170 Ω (30 W) 330 Ω (15 W) 670 Ω (7.5 W)
• 1 kΩ (5 W) 2 kΩ (2.5 W)
• Sensitivity 110 dB (1 W 1 m)
• Frequency Response 200 Hz – 6 kHz
• Dust/Water Protection IP65
• Polarity Hot: Black Com: White
• Operating Temperature -20 ℃ to +60 ℃ (-4 ゜F to 140 ゜F) (must be free from dew condensation)
Finish Horn flare: Aluminum off-white powder coating
Reflector horn: ABS resin off-white
Bracket holder: Aluminum gray powder coating
Bracket: Steel gray powder coating
Rear cover: ABS resin gray
Screw and bolts: Stainless steel
Speaker Cable: Polyvinyl chloride insulated cabtyre cable
(6 mm (0.24) in diameter 600 mm (23.62) in length)
Dimensions φ500 (W) ? 463 (D) mm (φ19.69 ? 18.23)
