8 x 1 HDMI Switcher (HDCP) (VS81HDMI)

Description

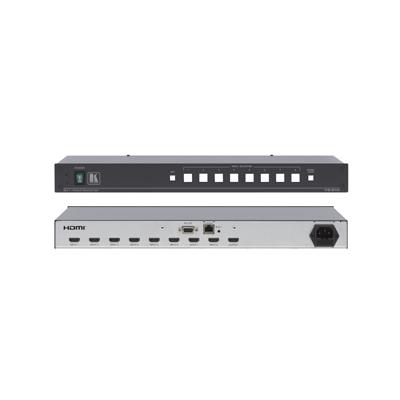

VS-81H 8×1 HDMI Switcher

The VS−81H is a high−performance switcher for HDMI signals. It reclocks and equalizes the signal and switches one of the 8 inputs to a single HDMI output.

• Max. Data Rate – 6.75Gbps (2.25Gbps per graphic channel).

• HDCP Compliant.

• HDTV Compatible.

• HDMI Support – Deep Color x.v.Color Lip Sync HDMI Uncompressed Audio Channels Dolby TrueHD DTS−HD CEC.

• 3D Pass-Through.

• I-EDIDPro Kramer Intelligent EDID Processing – Intelligent EDID handling & processing algorithm ensures Plug and Play operation for HDMI systems.

• Dual Mode – PC and DVD Modes selectable by input.

• Flexible Control Options – Front panel RS−232 (K−Router Windows−based software is included) Ethernet & IR remote (included).

• Video Disconnect.

• Front Panel Lockout.

• Kramer Equalization & re-Klocking Technology – Rebuilds the digital signal to travel longer distances.

• Worldwide Power Supply – 100−240V AC.

• Standard 19” Rack Mount Size – 1U. Rack ears included.

Applications

• Conference room presentations and advertising applications.

• Rental and staging.

Specifications

• Inputs – 8 HDMI Connectors.

• Outputs – 1 HDMI Connector.

• Max. Data Rate – 6.75Gbps (2.25Gbps bandwidth per graphic channel).

• Compliance With Hdmi Standard – Supports HDMI and HDCP.

• Resolution – Up to UXGA; 1080p deep color.

• Power Consumption – 100−240V AC 50/60Hz 12VA.

• Controls – Front panel buttons infrared remote control port RS−232 Ethernet.

• Product Dimensions – 19 x 7.20 x 1U (43.6cm x 18.30cm 4.36cm) W D H

• Product Weight – 1.7kg (3.7lbs) approx.

• Shipping Dimensions – 55.00cm x 27.60cm x 10.70cm (21.65 x 10.87 x 4.21 ) W D H

• Shipping Weight – 2.7kg (5.9lbs) approx.

• Included Accessories – Power cord RC−IR3 remote control transmitter.
