4 x 8 4K60 4:2:0 Matrix Switcher

Description

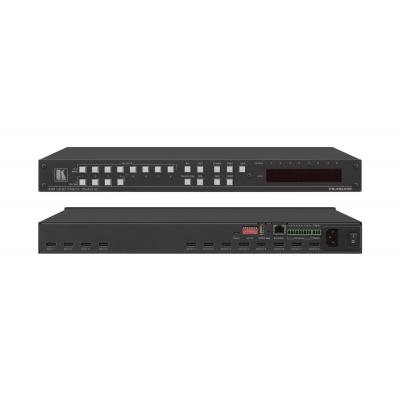

VS−48UHD is a high−quality 4×8 matrix switcher for 4K@60Hz (4:2:0) HDMI signals and embedded audio. It reclocks and equalizes the signals and can route any one of four HDMI HDCP−compliant sources (selectable) to any or all outputs simultaneously. VS−48UHD offers a flexible audio scheme where any HDMI digital audio input can be routed to any HDMI digital audio output in addition to ARC support to produce an equivalent 12×10 audio matrix.

• Max. Data Rate — 8.91Gbps data rate (2.97Gbps per graphics channel).
• Max. Resolution — 4K@60Hz (4:2:0).
• Independent 12×10 Audio Matrix — With 4 embedded digital inputs + 8 ARC inputs and 8 digital outputs + 2 ARC outputs.
• Kramer Step–In Over HDMI Technology.
• HDMI HDCP and DVI Compliance.
• Selectable HDCP Off per Input.
• Memory Locations — 12 presets for quick access to common configurations.
• Advanced EDID Management per Input.
• Active Source & Acceptor Detection.
• Automatic Input Selection — Based on priority selection or last connected input.
• Firmware Upgrade — Via mini USB Ethernet or the RS–232 port.
• HDMI Support — Deep Color 3D ARC up to 7.1 uncompressed audio channels.
• Kramer reKlocking™ and Equalization Technology — Rebuilds the digital signal to travel longer distances.
• Embedded Pattern Generator — With selectable patterns.
• Lock Button — To prevent tampering.
• Kramer Protocol 3000 Support.
• Control Options — RS–232 serial commands transmitted by a PC touch screen system or other serial controllerEthernet port via LAN embedded Web pages via LAN for configuration and control.
• Size — Standard 19 (1U). Rack ears included.

APPLICATIONS
• Control rooms with multiple displays
• Presentation and multimedia applications
• Systems that require automatic HDMI routing
