1:10 Composite Video & Stereo Audio Distribution Amplifier

Description

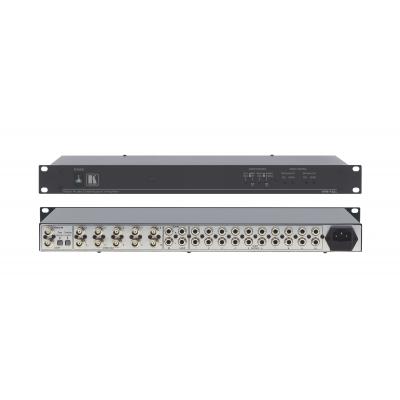

VM-10XL 1:10 Composite Video & Stereo Audio Distribution Amplifier

The VM-10xl is a broadcast quality 1:10 distribution amplifier for composite or SDI video signals with unbalanced stereo or balanced mono audio. It provides controls to compensate for signal losses inherent in long cable runs.

• High Bandwidth – 360MHz (−3dB).

• Audio Controls.

• Level (Gain) and EQ (Peaking) Controls.

• Looping Input.

• Selectable Input Signal Termination.

• Video AC/DC Coupling Selection.

• Standard 19” Rack Mount Size – 1U.

Applications

• Broadcast AV duplication studios delivering undiminished quality duplicates.

• Video audio showrooms for delivering an identical picture and sound to several monitors.

• Video component distribution using several VM-10xl units.

• CCTV and security applications.
