SFR Series Rack SFR-12-18

Description

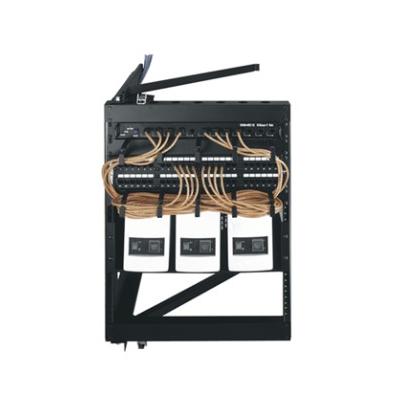

Our Swing Frame Rack has an innovative open-back wall mount design ideal for mounting over existing equipment and physical obstacles (conduit telephone equipment etc.). Use for mounting patch panels hubs and switches in a secure room or closet. Rugged steel construction with 100lb weight capacity – the greatest strength in its class.

• Rugged steel construction provides the greatest strength in its class
• Unique design uses pivot points and can be inverted left or right swing
• Open-back design maximizes useable wall space
• 90? opening with positive stop for punching down
• Ready-to-assemble design allows for flat shipment via UPS
• Standard 10-32 threaded rackrail with marked spaces
• Abundant tie points and cable pass-throughs
• Includes 50 rack screws and hook and loop cable fasteners

SPECIFICATIONS

GENERAL INFO
Finish: Black Powder Coat

ASSEMBLY/INSTALLATION INFORMATION

Assembly Required: Yes

LISTING AGENCIES/THIRD PARTY CERTIFICATIONS

RoHS: Yes
Greenguard: Yes

DIMENSIONS

Usable Depth: 16
Usable Height: 21
Capacity Weight (US): 100
Depth (US): 18.2
Height (US): 27.22
Width (US): 19.6
Rack Units: 12

TECHNICAL INFORMATION

Rackrail Type: 10-32
Static Load Capacity: 100
Material: Steel
Mounting: Horizontal
