AV 3.5mm Module

Description

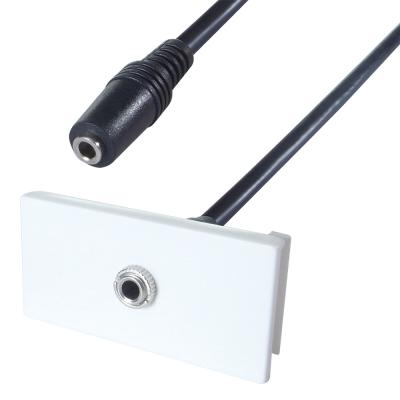

The 3.5mm Snap-In Modules feature a socket on the front of the plate and a female socket on the reverse via a trailing cable

The Universal AV Snap-in Modular Range is ideal for installing and concealing AV cables within walls or trunking. This system is ideally suited to classrooms conference rooms & meeting rooms. You have the freedom & flexibility of choosing the connection combinations you require to create your own specific set-up.

The installation will consist of single or double back boxes surface mounted onto a wall. Relevant faceplates are screwed to the back boxes and your chosen modules simply snap into the faceplate. Any unused space can be filled with a blanking plate. Cables from the AV devices such as a Television Projector Speaker or Whiteboard are plugged into the female socket on the reverse of the module and generally concealed in trunking. This completes the AV Snap-In Modular System and it is now ready for the user to plug cables from their Desktop PC or Laptop into the front of the AV Modules. Installation couldn’t be easier!

Specifications
• Connector 1: 3.5mm Socket
• Connector 2: 3.5mm Socket
• Module Dimensions: 25 x 50mm (W x H)
• Cable length: 200mm
• Colour: White
