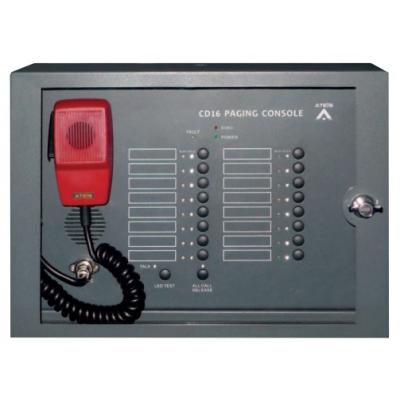

Penton UK's Wall Mount 16 Button Fire Microphone

Description

Wall-mount heavy duty remote paging console with Access level 2 protection to comply with the EN 54-16. Compatible with DIVA8 System and communicates over a dedicated RS485 for Power audio and DATA.
• 1 pcs Secured on Controller or Slave unit. 2nd and more on Controller or Slave unit are not secured.
• Max. 32 in a system and 10 in Master-Slave string.

Specifications
• Power supply
– DC/battery power requirements
– Voltage:18 – 26 VDC
– Power consumption:120 mA

• Performance
– Frequency response:-3 dB @ 200 to 8kHz
– THD:< 1% @ 1 kHz
– Output level Max:6 dBu
– Noise gate threshold:-84 dBu – 24 dBu
– Attack time:8 ms
– Release time:100 ms
– Output impedance:100 Ohms

• Monitoring speaker
– Impedance:4 Ohm
– Output power:1 W @ 1 Khz
– Frequency response:-3 dB @ 200 to 12 kHz

• Dimensions(H x W x D)
– CD16:- 130 x 350 x 130 mm

• Weight
– CD16:- 4.7 kg
