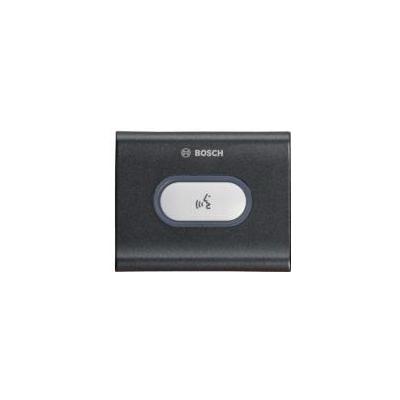

DCN-FMICB Flush Microphone Control Panels

Description

The Microphone Control Panel is connected to the Dual Delegate Interface (DCN-DDI) via one of the RJ11 control inputs.

Functions
Controls and Indicators
• One microphone control button
• Three-color illuminated ring around the microphone button which can show the following states:
– Red – microphone is active
– Flashing red* – last minute of speech time is active
– Green – the delegate is listed in the request list
– Flashing green – the delegate is the first in the request list and the next one to get the floor
– Yellow* – the delegate is part of the Notebook and can control its microphone without interaction of the operator
