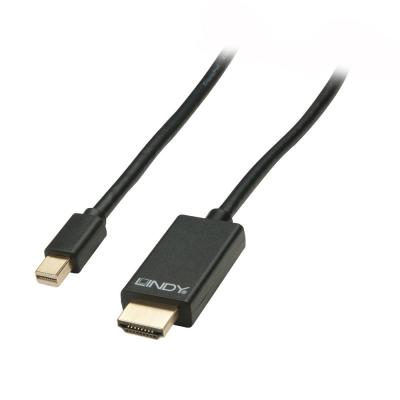

5m Active Mini DisplayPort Male To HDMI Male 10.2G Cable – Black

Description

• Supports video-mirroring and extended desktop modes
• Connectors: Mini DisplayPort Male to HDMI Male
• Compliant with DisplayPort 1.2 specification for both 1.62 and 2.7Gbps
• Compliant with HDMI 1.4a specification up to 3.0Gbps 3840 x 2160@30Hz 24 Bit Colour
• 2 year warranty

Connectors

• Connector A: Mini DisplayPort Male
• Connector B: HDMI Type A male
• Housing Material:
• Mini DisplayPort: PVC
• HDMI: PVC
• Connector Plating: Gold plated
• Pin Construction: Copper
• Pin Plating: Gold plated
• Dimensions (approx.) WxDxH:
• Mini DisplayPort: 17.8×10.8×7.9mm (0.7×0.43×0.31in)
• HDMI: 37.65×20.8x12mm (1.48×0.82×0.47in)

Cable Construction

• Length: 5m (16.44ft)
• Standard: HDMI 1.4 DisplayPort 1.2
• Colour: Black
• Type: Round
• Jacket Diameter: 4.8mm (0.19in)
• Jacket Material: PVC
• Conductor Material: Tinned Copper
• Conductor Gauge: 32AWG
• Shielding: Aluminum Braid 85%

Specifications

• Supported Bandwidth: 10.2Gbps
• Maximum Resolution: 3840×2160@30Hz 4:4:4 8bit
• Nominal Attenuation:
• 100MHz~450MHz -2.44–5.099dB
• 450MHz~8100MHz -5.094~32.906dB
• Minimum Bend Radius: 50mm (1.97in)
• Operating Temperature: 0?C – 45?C (32?F – 113?F)
• Storage Temperature: -10?C – 80?C (14?F – 176?F)

Miscellaneous

• Packaging Type: Polybag
• Warranty (Years): 2
• Certificated: CE FCC RoHS REACH UL & California Proposition 65
