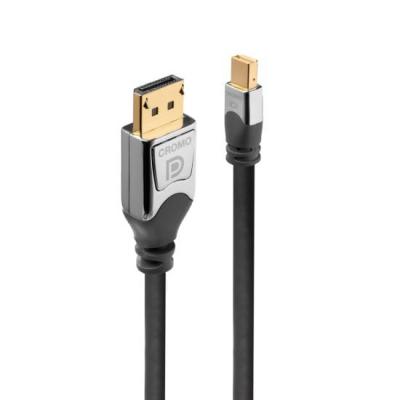

1m CROMO Mini DisplayPort to DisplayPort Cable

Description

1m CROMO Mini DisplayPort to DisplayPort Cable

CROMO Mini DisplayPort To DisplayPort Cables feature triple shielded construction with 32AWG conductors for premium performance and corrosion resistance. High quality 24K gold plated contacts and connectors maintain optimal signal integrity and maximum reliability.

UHD resolutions up to 4K 4096×2160@60Hz 4:4:4 10bit including stereoscopic 3D are supported. CROMO DisplayPort cables are capable of delivering 4:4:4 colour spacing for the most accurate colour representation possible.

CROMO cables feature sleek chrome design ABS housing to complement the aesthetics of style focused commercial and home applications.

Package Contents
1m CROMO Mini DP to DP Cable

PRODUCT DETAILS

• Superior performance and design Mini DisplayPort to DisplayPort cable
• Supports UHD resolutions up to 4K 4096×2160@60Hz 4:4:4 10bit
• Chrome design ABS housing 24K gold plated connectors and contacts
• Triple shielded cable corrosion resistant high performance tinned copper 32AWG conductors
• DisplayPort 1.2 4K 3D 21.6Gbps; 10 year warranty

TECHNICAL INFORMATION

Connectors:

• Connector A: Mini DisplayPort 20 Pin Male
• Connector B: DisplayPort 20 Pin Male
• Housing material: Chrome plated ABS
• Coating of connector: 3μm Gold
• Pin Construction: Phosphor bronze
• Coating the Pins: 15μm Gold
• Dimensions: approx. Mini DP 10 x 7 x 32mm DP 20 x 12 x 35mm (WxDxH)

Cable Construction:

• Length: 1m
• Standard: 1.2 compatible
• Colour Grey
• Type: Round
• Jacket diameter: 5.5mm
• Jacket material: PVC
• Conductor material: Tinned copper
• Leading: 32AWG
• Shielding: copper braid 85% coverage

Technical information:

• Supported bandwidth: 17.28Gbps in HBR2 mode
• Maximum resolution: 4096x2160p 60Hz including 3D (stereoscopic)
• Maximum colour depth: UHD up to 4K 60Hz (4: 4: 4 10bpc)
• Nominal Damping: 300kHz-825MHz – <5dB 825MHz-2.475GHz - <5dB 2.475GHz-4.125GHz - <12dB 4.125GHz-5.1GHz - <20dB
• Minimum bend radius: 55mm
• Operating temperature: -20 ?C – 80?C
• Storage temperature: -25? C – 85?C
• Available lengths: 0.5m – 5m
